HHD9
Maximum Productivity in the Toughest Conditions

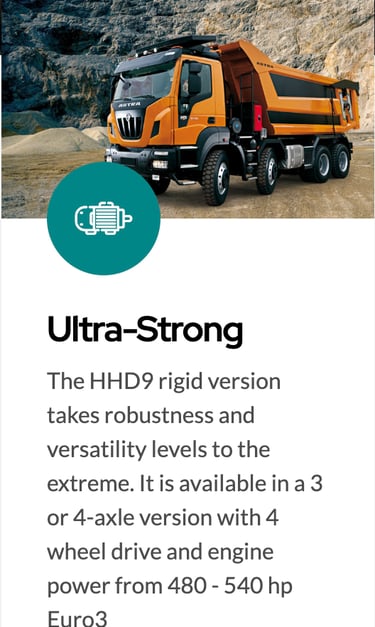

The HHD9 Rigid truck is designed for maximum durability and versatility.

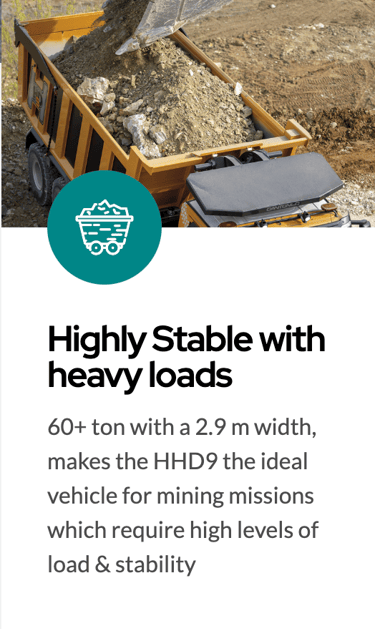

Available with three or four axles and four-wheel drive, it comes with 480 hp and 540 hp engines that meet Euro 3 standards. With a gross vehicle weight exceeding 60 tons and a maximum width of 2.9 meters, the HHD9 Rigid is the ideal vehicle for demanding tasks on rugged terrain requiring high load capacity and exceptional stability, particularly in the mining industry for applications such as dump trucks or large-capacity tankers.

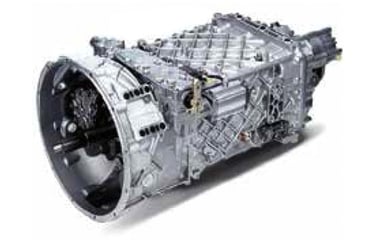

The ZF Ecosplit manual gearbox is ideal for less demanding quarry and mining operations.
• Single-disc dry clutch
• 16 forward and 2 reverse speeds
• Double H-shaped shift lever (high or low range)
• Pre-selection of gear ratios on the lever (low and high speeds)
• Gear ratio engagement via clutch pedal
• Pneumatic gear shifting (speed input via a pneumatic system)

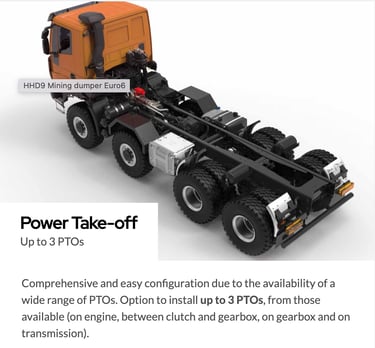

• Powertrain (PTO) with rear-mount or inter-clutch/gearbox mounting options
• Speed limiter
Beyond the Road
HHD9 Robust Gearbox Options
The HHD9 drivetrain is designed to handle the toughest and most demanding jobs. Astra is your ideal partner for hard work, offering a wide range of drivetrain solutions to meet all your needs with the best products.
